Shaft Alignment - Nauticus Machinery

Optimal shaft alignment and natural frequencies for whirling and axial vibrations

Shaft alignment

Shaft alignment has in recent years become more of a challenge due to increased power, lower shaft speeds and heavier propellers in combination with a shorter propulsion shaft. In Nauticus Machinery Shaft Alignment these effects can be carefully considered when designing an optimal shaft line in order to avoid problems in operation.

DNV's shaft alignment software

  • The Shaft alignment module in Nauticus Machinery is an advanced and flexible software tool for the calculation of the optimal shaft alignment and natural frequencies for whirling and axial vibrations
  • Trouble-free and flexible modelling of the shaft line
  • Calculates the bearing loads, shaft deflections, bending moments and stress, shear force and so on
  • Finds exact bearing positions based on verification methods such as jacking or strain gauge measurements

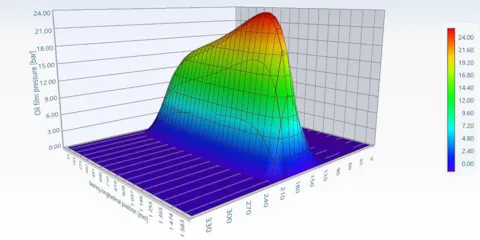

  • After stern tube bearing lubrication calculation to ensure hydrodynamic lubrication for all running conditions
  • Can be used in the early design stage or in the operating stage to investigate possible damages due to error in alignment

Key benefits of the Shaft Alignment software

  • Simplifies your analysis process by integrating shaft alignment, whirling and axial vibration calculations into one common user interface and reporting tool
  • Efficient modelling by drag and drop, scripting function or import files
  • Unlimited operating conditions can be calculated in one batch
  • Rich component menu providing relevant shaft alignment elements
  • A proven solution, mathematical algorithms have been in use since 1990 with continuous enhancements
  • Easy data exchange with common Microsoft Office applications or FEM/CAD-applications
  • Flexible report generator
